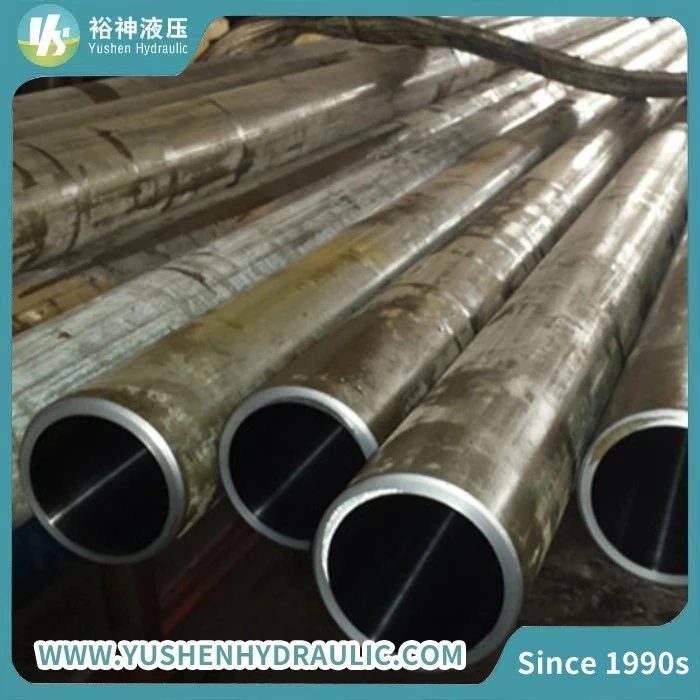

Carbon Steel Chrome Plated Structural Tube
OEM-Grade Precision Tube for Hydraulic & Industrial Engineering Systems.
Company Profile & Manufacturing Capability
We are a professional manufacturer of carbon steel chrome plated structural tubes, focused on OEM supply for hydraulic systems, industrial machinery, and precision mechanical applications.
Our production system is designed for long-term industrial supply stability and OEM audit readiness, not spot trading.
Manufacturing Capability
• Multi-line continuous production system for large-volume orders.
• SPC-based process control to ensure dimensional stability.
• Full batch traceability (raw material → production → inspection → shipment).
• Process-based defect prevention system (not only final inspection).
• Export-oriented logistics and packaging system.
OEM Supply Positioning
We primarily serve:
• Hydraulic cylinder manufacturers.
• Industrial machinery OEM factories.
• Agricultural equipment manufacturers.
• Automation system integrators.
• Industrial distribution networks.
Industry Application Validation
Our chrome plated structural tubes are widely used in systems requiring precision motion, cyclic loading, and long service life under mechanical stress.
Typical Industrial Applications
Hydraulic cylinder piston rod systems.
Construction machinery hydraulic assemblies.
Agricultural machinery actuation systems.
Industrial automation linear motion systems.
Heavy-duty mechanical transmission systems.
Engineering Requirement Summary
These applications typically require:
Stable wear resistance under continuous sliding motion.
Consistent dimensional accuracy across production batches.
Corrosion resistance in outdoor or humid environments.
Long operational life under cyclic load conditions.
Product Engineering Definition
Carbon Steel Chrome Plated Structural Tube is manufactured using precision cold-drawn carbon steel as the base material, followed by controlled hard chrome plating.
The structure combines:
• High-strength carbon steel core for mechanical load-bearing performance.
• Hard chrome surface layer for wear resistance, corrosion protection, and low friction performance.
Engineering Performance Advantages
Wear Resistance
The hard chrome layer provides a surface hardness of 800–1000 HV, significantly improving wear resistance under reciprocating and sliding motion conditions.
This is critical in hydraulic piston rod systems operating under continuous pressure cycles and mechanical friction.
Corrosion Resistance
The chrome layer forms a dense passive oxide film that protects the substrate from oxidation and industrial corrosion.
Dimensional Precision
All tubes are produced using controlled cold drawing and precision grinding processes.
Typical manufacturing tolerances:
• Diameter: ±0.02 mm (precision grade control).
• Straightness: Controlled for hydraulic alignment performance.
• Batch consistency: Maintained through SPC monitoring system.
Structural Strength
We use industrial-grade carbon steel such as ASTM A519 or equivalent, ensuring:
• High tensile strength.
• Stable load-bearing performance.
• Resistance to deformation under mechanical stress.
Surface Finish & Friction Performance
The chrome-plated surface achieves:
• Surface roughness: Ra ≤ 0.2 μm.
• Low friction coefficient for dynamic movement.
• Improved sealing life in hydraulic systems.
Manufacturing Process
Cold Drawing → Straightening → Precision Grinding → Polishing → Hard Chrome Plating → Thickness Testing → Full Inspection → Packaging.
Critical Process Control Strategy
We focus on preventing defects at the process level, including:
Chrome peeling prevention through surface activation control.
Micro-crack risk reduction via plating parameter optimization.
Dimensional drift prevention through SPC statistical control.
Surface uniformity control across production batches.
Inspection System
100% surface visual inspection.
Chrome thickness measurement.
Dimensional accuracy verification.
Surface roughness analysis.
Full batch traceability documentation.
Technical Specifications
|
Parameter |
Specification |
|
Material |
Carbon Steel (ASTM A519 / SAE 1020 or equivalent) |
|
Outer Diameter |
10 mm – 200 mm |
|
Wall Thickness |
1 mm – 10 mm |
|
Length |
1000 – 6000 mm (customizable) |
|
Chrome Layer Thickness |
10 – 30 μm |
|
Hardness |
800–1000 HV |
|
Tolerance |
±0.02 mm |
|
Surface Roughness |
Ra ≤ 0.2 μm |
|
Standards |
ASTM / ISO / EN (optional) |
Quality Assurance & External Verification System
We operate a structured quality system designed for OEM-level industrial supply chains and supplier audit requirements.
Internal Quality Control System
SPC-based dimensional monitoring.
100% inspection of critical parameters.
Process-based defect prevention system.
Full batch traceability from raw material to shipment.
Third-Party Verification (Optional)
SGS inspection reports available upon request.
Bureau Veritas (BV) inspection support.
TÜV inspection support for technical validation.
Documentation per Batch
Material Test Certificate (MTC).
Inspection report.
Traceability record.
Third-party inspection report (if required).
OEM Supply Capability & Industrial Cooperation Model
We support OEM manufacturing programs for long-term industrial cooperation.
Supply Models
Trial production orders for qualification stage.
Stable monthly supply programs for OEM production.
Long-term framework agreements for distributors.
Custom Engineering Capability
Diameter and wall thickness optimization.
Length and tolerance customization.
Chrome thickness adjustment based on application.
Surface finish engineering requirements.
Export packaging optimization for logistics.
Industrial Application Case Logic
Our products are applied in industrial environments where long-term operational stability and precision performance are critical.
Typical OEM Application Scenarios
Hydraulic cylinder systems in construction machinery.
Agricultural machinery operating in outdoor environments.
Industrial automation systems requiring high-precision linear motion.
Heavy-duty mechanical systems under continuous load cycles.
Engineering Outcome Focus
In these applications, performance expectations typically include:
Reduced wear rate under continuous operation.
Stable dimensional consistency across production batches.
Extended maintenance intervals for hydraulic systems.
Improved sealing system lifespan.
Commercial Terms
To support global industrial procurement requirements, we provide:
Flexible MOQ for trial orders.
Stable production lead time for bulk manufacturing.
Long-term pricing stability for contract customers.
OEM framework supply agreements available.
Export packaging suitable for sea freight and container logistics.
Final terms are confirmed based on specification and order volume.
Why Global OEM Buyers Choose Us
Compared with general suppliers, our competitive advantages are based on engineering control and supply stability:
Process-controlled manufacturing consistency (not only final inspection).
Stable batch-to-batch dimensional performance.
Engineering-level defect prevention system.
OEM-oriented long-term supply capability.
Export experience across multiple industrial markets.
Production stability over transactional pricing.
FAQ
Q: What is the main application of chrome plated carbon steel tubes?
A: They are used in hydraulic and mechanical systems requiring wear resistance, dimensional precision, and long service life.
Q: What is the advantage of hard chrome plating?
A: It improves:
Wear resistance
Corrosion resistance
Surface hardness
Friction reduction
Q: What is the standard chrome thickness?
A: Typically 10–30 μm, depending on application requirements.
Q: Can you support OEM customization?
A: Yes, full customization of size, tolerance, coating, and packaging is available.
Q: How is quality consistency ensured?
A: We use:
SPC process control
100% inspection system
Batch traceability system
Process-level defect prevention
Q: Do you provide certification documents?
A: Yes. MTC, inspection reports, and third-party certificates (SGS / BV / TÜV) are available upon request.
